Drip Oiler

LUBRICATION ELECTRICAL TIMER

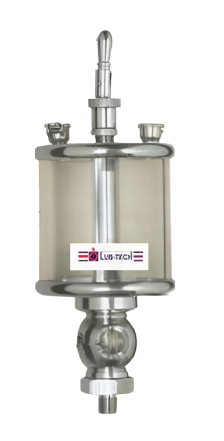

Drip Feed Oilers are Single Point Lubricators and are mounted directly on the Lubrication Points. These oilers dispense oil by gravity from transparent reservoir through Needle Valve. The Needle Valve is joined with Toggle Pin by which the Operator can On / Off the flow manually. The flow of the oil is controlled by adjusting the needle Valve and can be visualized from the in built Sight Glass. These Oilers are available in different Thread Size from 1/4″ BSP to 3/8″ BSP.

MODEL SELECTION CHART

ModelCapacityL1L2L3
LTS – 1515ml409036
LTS – 3535ml550544
LTS – 7575ml5511556
LTS – 150150ml5512565
LTS – 250250ml5513584
LTS – 450450ml5518084
LTS – 750750ml55180110
